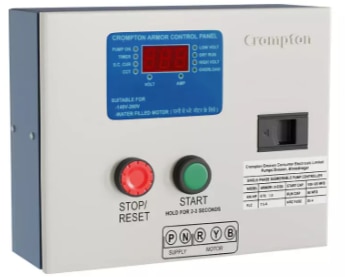

Panel for Single Phase Submersible Pump

Single phase borewell submersible pump control panel with automatic dry run protection — prevents motor burnout when water runs out. Built-in overload relay, MCB, contactor, and voltage protection. Suitable for all single phase borewell and sump submersible pumps.

Technical specifications

Supply voltage — 220V to 240V AC single phase

Frequency — 50 Hz

Motor capacity — 0.5 HP, 1 HP, 1.5 HP, 2 HP & 3 HP (confirm HP rating before purchase)

Protection class — IP54 weatherproof enclosure

Dry run protection — float switch / electronic probe type

Overload protection — adjustable thermal overload relay

Starting method — direct online (DOL) with capacitor

Indicators — power LED, run LED, fault/trip LED

Switching — heavy-duty AC contactor

Short circuit protection — MCB included

Operating modes — manual / automatic

Enclosure material — MS powder-coated / ABS

Compatible pump brands

This starter panel is compatible with all standard single phase submersible pumps including Crompton, Kirloskar, CRI, Texmo, Calama, Pandubi, Sharp, Doctor, and all other single phase submersible pump brands available in India.

Applications

Residential borewell water supply · underground sump pump control · overhead tank filling systems · farm and agricultural borewell pumps · apartment and housing society water supply · hotel and hostel pump rooms · industrial water supply systems · garden and irrigation pump control
